| The

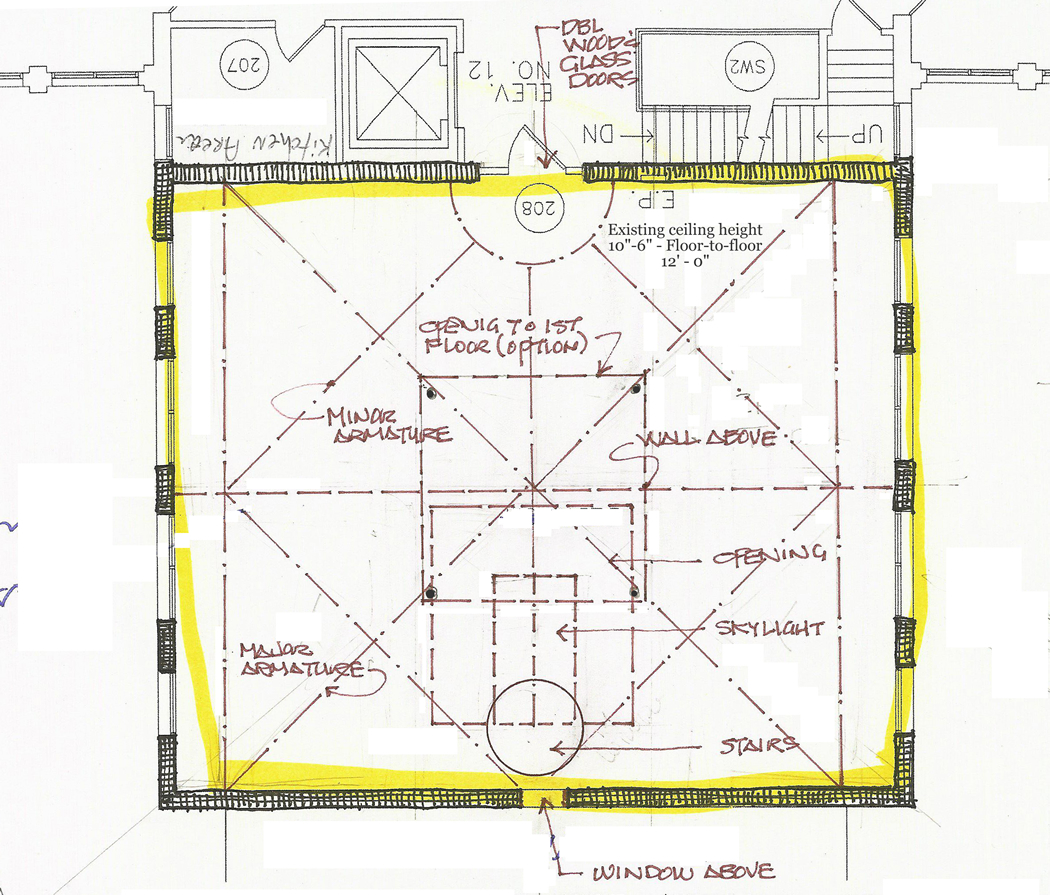

major components of this design are: the Armature system;
hand railing - a scaled down version of the Library Building;
classic iron circular stairway to first floor (option) and
loft areas; ridge skylight at roof (traditional detailing);
Double wood and glass doors at the Entry of the space (both
floors if first floor option is executed); in the ceiling/Loft
area, a sound insulated dividing wall across the center closing
the HVAC equipment
from the
the
new Reading/Dialog
spaces. |
|
| This
schema creates three spaces each with their own character
and functions. The first level for large group (+/- 75) work
in a wide spectrum
of different configurations typical of a NavCenter; the
second level for team breakouts and project areas (4
to 12); third level for three separated reading and dialog
areas for 6 people each. The three levels will be open vertically
[link:
section] and have natural light from two sides, the
skylight and the
exiting (now closed off) high window in the loft area. |
|
